A Machine With a Reel Hose

Econo C System

The Econo C unit is WellCamera’s most portable unit. See details below, and contact us for current pricing and availability.

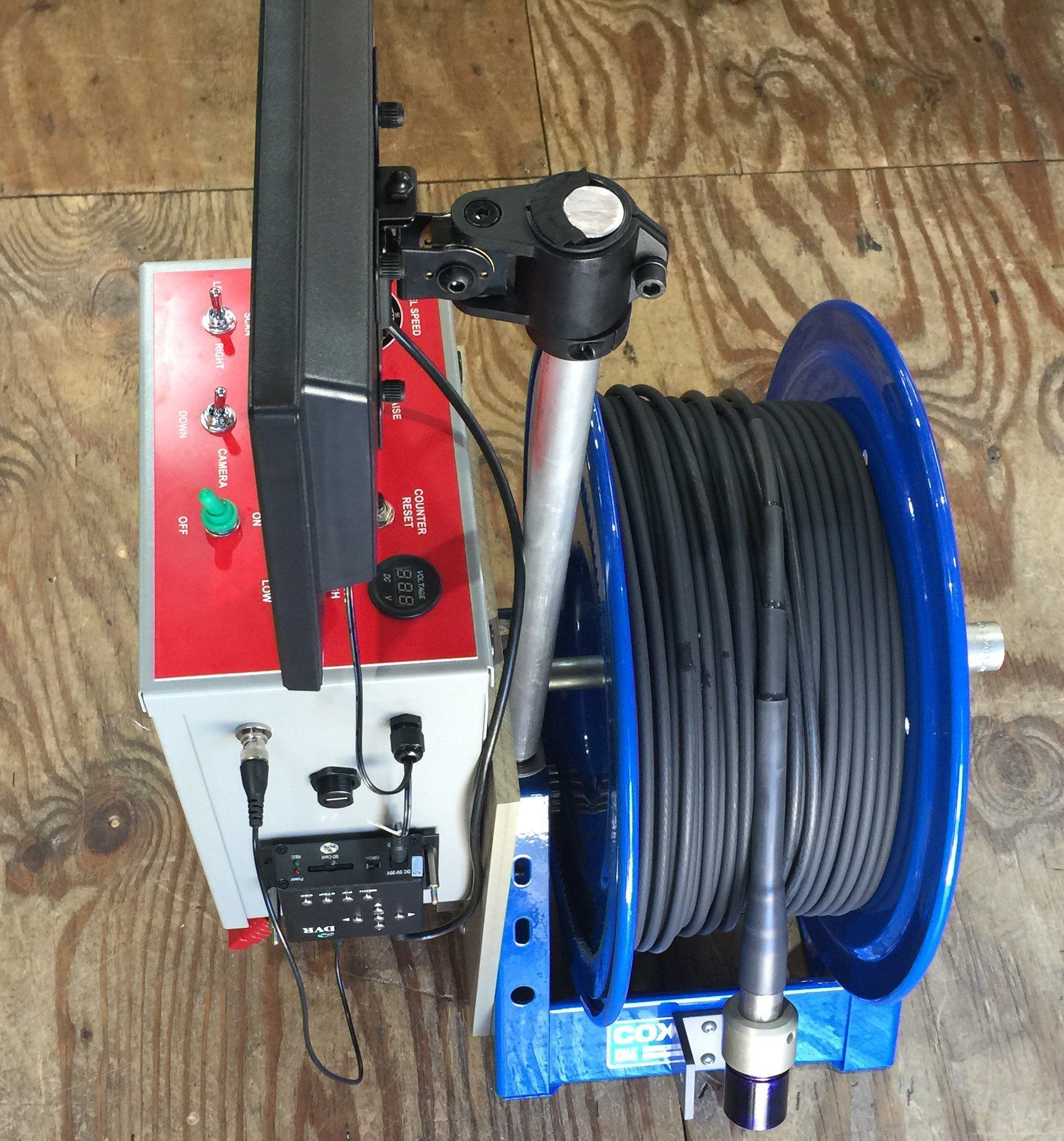

A Computer and a Hose Reel Attached to a Blue Metal Frame

Camera Head Details

  • Detachable Dual Camera Head, 2.75” OD (70mm)
  • Stainless Steel and Hard Anodized Aluminum
  • Pressure Rated to 1000 PSI (69 Bar)
  • Hi-Res Color Cameras, 680 TVL rated to .1 LUX
  • Side and Down View, Both With Adjustable Remote Focus
  • 360° Speed Adjustable Rotation
  • Adjustable White LED Lighting
  • Stainless Steel Centralizer

Reel Details

  • Powder Coated Steel and Anodized Aluminum
  • Motorized, Right Angle Gear Motor, 12 Vdc
  • Cable Lengths up to 820 feet (250 meters)
  • Multi-Conductor Kevlar Reinforced Cable
  • Polyurethane Jacket
  • Cable Rated to 1000 lbs. Break Strength (450 Kg)
Reel Hose Nozzle Hanging

Other Features

  • Adjustable Deployment Arm
  • User Friendly Control Panel
  • 12 Inch Flat Screen Monitor (30 cm)
  • On-Screen Depth Counter Read Out
  • On-Screen Video Typewriter
  • DVR with Removable SD Card
  • USB Adapter for SD Card
A Machine With a Reel Hose

Options

  • Mini-Camera Head, 1.7” OD (43 mm), Color Camera, Down View only
  • Detachable Battery Powered Ring Light for Extra Lighting, with Charger
  • 120 Vac to 12 Vdc Power Supply
A Machine With a Reel Hose

CONTACT US to learn more information about our well camera or borehole inspection camera systems. You can call us at 940-391-6334 or email us at john@wellcamera.com or wellcamera@gmail.com
